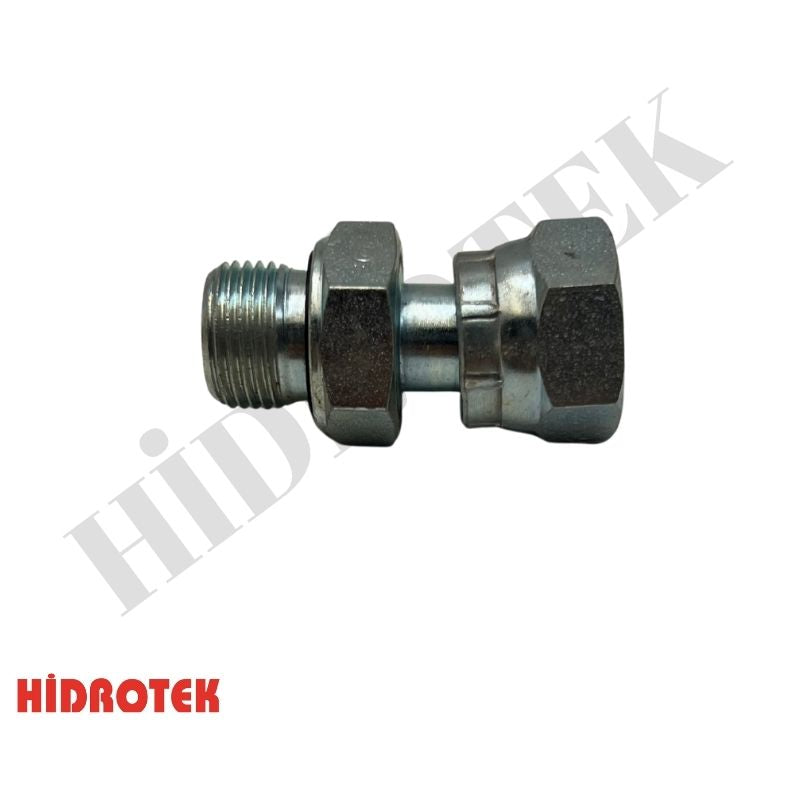

3/4-17/16 HİDROLİK BSP-ORFS TERS NİPEL

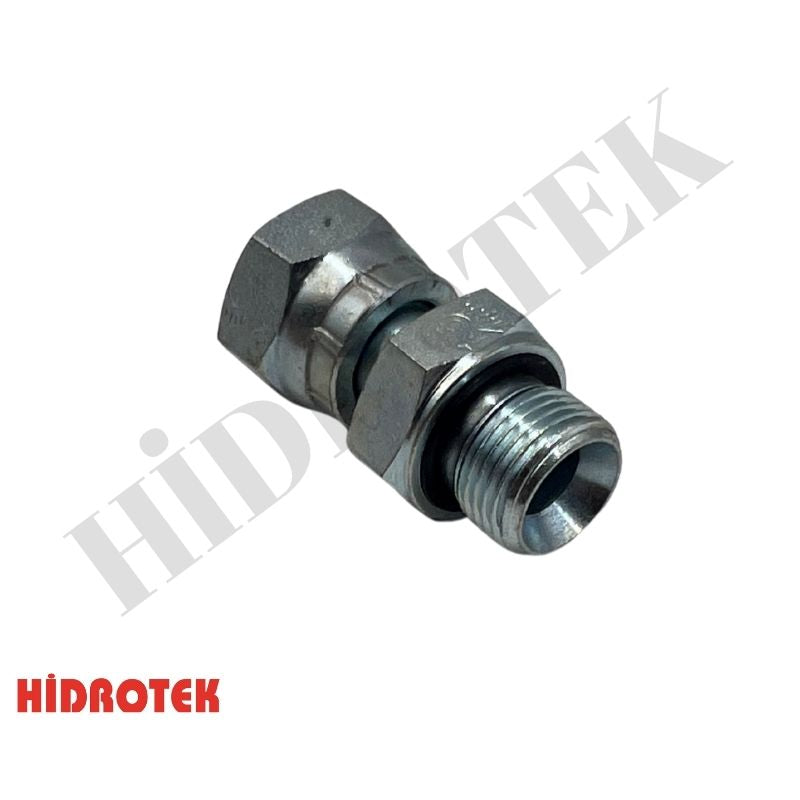

BSP - ORFS TERS PFX NİPEL
BSP WITH ELASTOMERIC SEAL - ORFS FEMALE SWIWEL CONNECTOR

DİŞ ÖLÇÜSÜ
THREAD SIZE
T1

DİŞ ÖLÇÜSÜ
THREAD SIZE
T2

B

C

ØD

A1

A2

R1/4-19

9/16-18

35.5

12

5

19

19

R1/4-19

11/16-16

37.5

12

6

19

22

R3/8-19

11/16-16

38

12

6

22

22

R3/8-19

13/16-16

42

12

9

22

24

R1/2-14

13/16-16

45

14

9

27

24

R1/2-14

1"-14

48

14

12

27

30

R3/4-14

1"3/16-12

53

16

15

32

36

R3/4-14

1"7/16-12

55.5

16

16

36

41

R1"-11

1"7/16-12

58

18

19

41

41

R1"1/4-11

1"11/16-12

64

20

23

50

50
