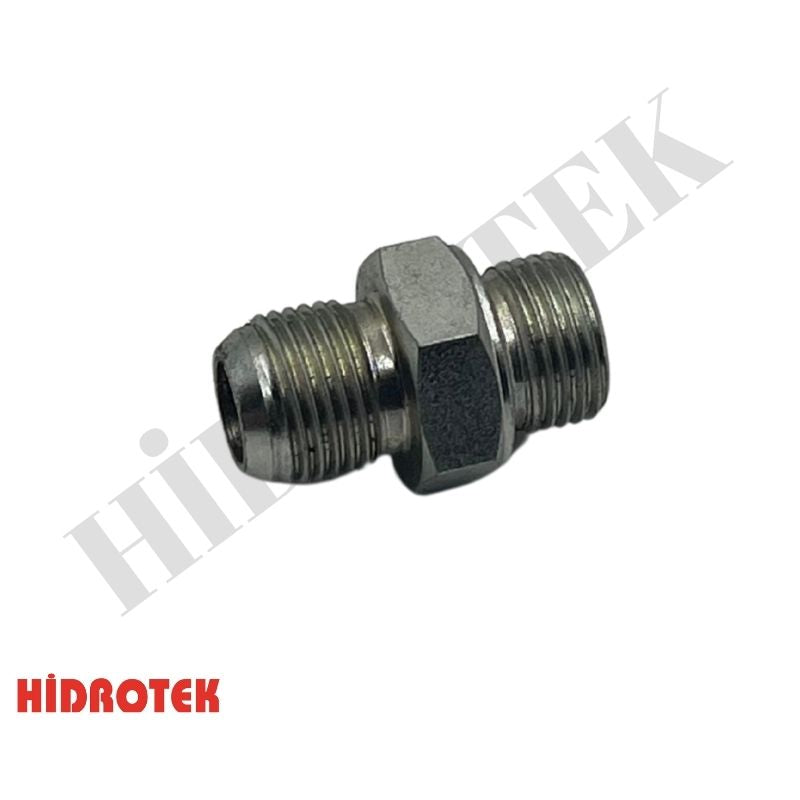

3/4-3/4 HİDROLİK BSP-UNF NİPEL

BSP - UNF PUL SIKMALI NİPEL
BSP METAL SEALİNG EDGE - UNF 37° FLARE NIPPLE

DİŞ ÖLÇÜSÜ
THREAD SIZE
T1

DİŞ ÖLÇÜSÜ
THREAD SIZE
T2

B

C

ØD

AA

R1/8-28

7/16-20

29.5

8

4

14

R1/4-19

7/16-20

34

12

4.5

19

R1/4-19

1/2-20

34

12

6

19

R1/4-19

9/16-18

34.5

12

7

19

R1/4-19

5/8-18

36.5

12

6

19

R1/4-19

3/4-16

37

12

6

19

R3/8-19

7/16-20

34.5

12

4.5

22

R3/8-19

1/2-20

34.5

12

6

22

R3/8-19

9/16-18

34.5

12

7.5

22

R3/8-19

5/8-18

36.5

12

8

22

R3/8-19

3/4-16

37.5

12

9

22

R3/8-19

7/8-14

40

12

9

22

R1/2-14

1/2-20

38

14

6

27

R1/2-14

9/16-18

38

14

7.5

27

R1/2-14

5/8-18

40

14

8

27

R1/2-14

3/4-16

41

14

10

27

R1/2-14

7/8-14

43.5

14

12

27

R1/2-14

1"1/16-12

46.5

14

12

27

R3/4-14

3/4-16

43

16

10

32

R3/4-14

7/8-14

45.5

16

12.5

32

R3/4-14

1"1/16-12

50

16

15.5

32

R3/4-14

1"5/16-12

51

16

16

36

R1"-11

1"1/16-12

53

18

15.5

41

R1"-11

1"5/16-12

54

18

21.5

41

R1"1/4-11

1"5/16-12

58

20

21.5

50

R1"1/4-11

1"5/8-12

59

20

27.5

50

R1"1/2-11

1"7/8-12

66

22

33.5

55
